Description

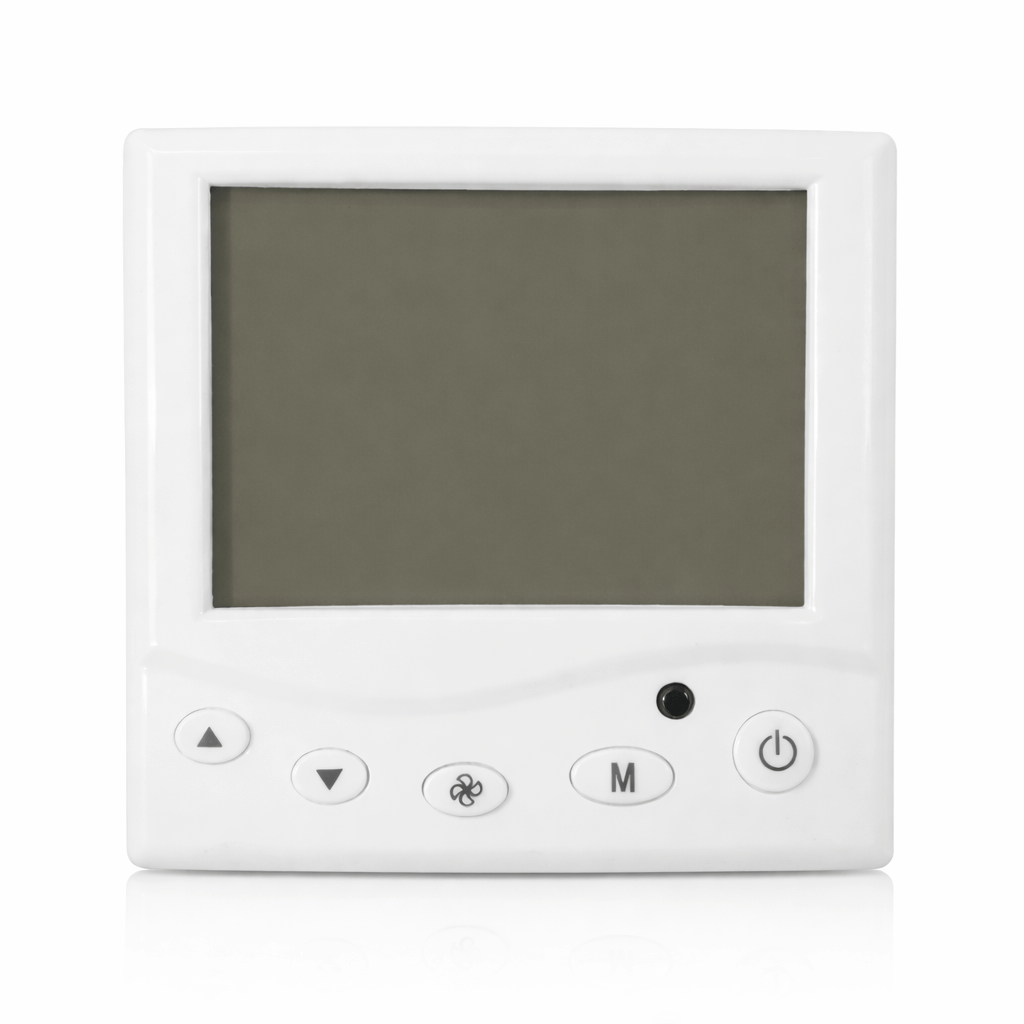

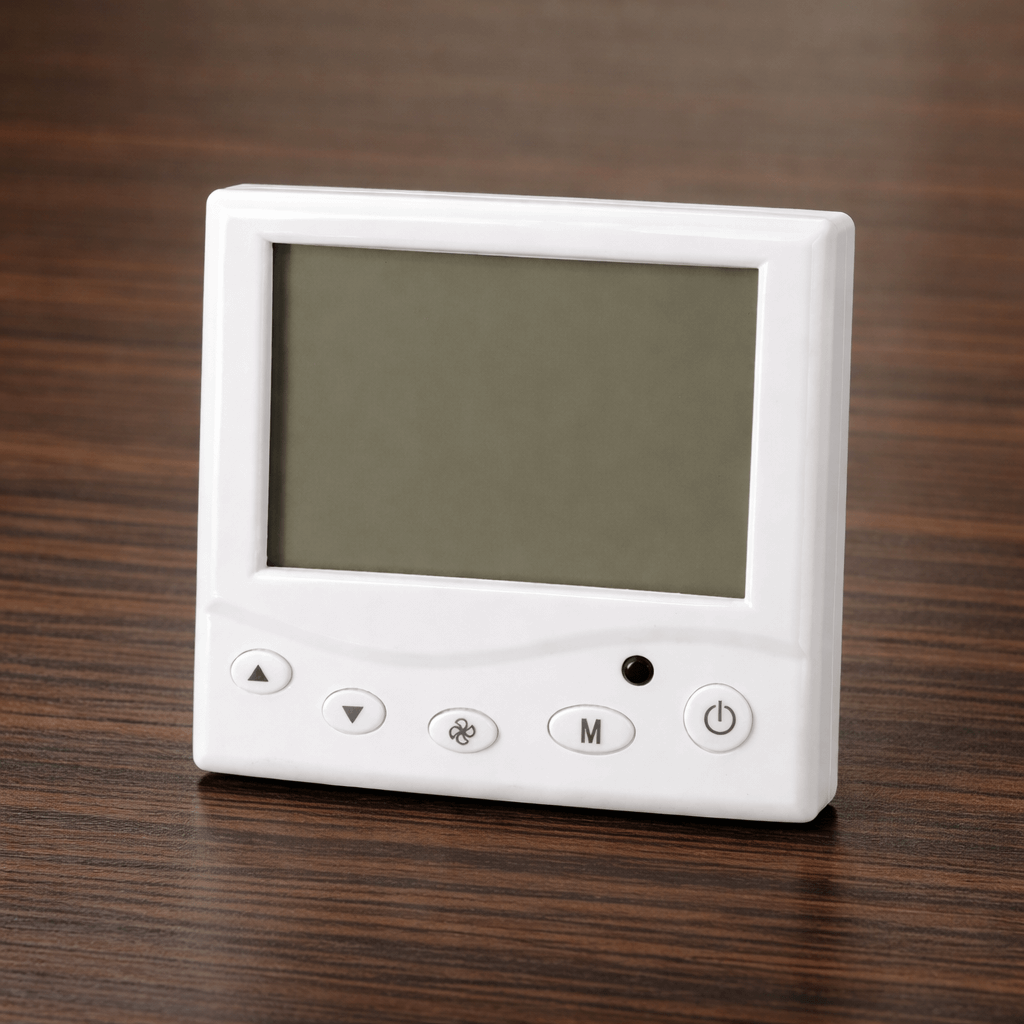

Smart WiFi Thermostat – Specifications
Product Type
Smart WiFi Thermostat (Fan Coil / Water Valve Control)
Mobile App
-
TELEHEMS (Android)
Power Supply
-
AC 220V ±10%
-
Frequency: 50 / 60 Hz
Rated Output Power
-
< 200 W
Control Functions
-
Fan control: High / Medium / Low
-
Valve control: ON / OFF
-
Supports independent fan and valve operation

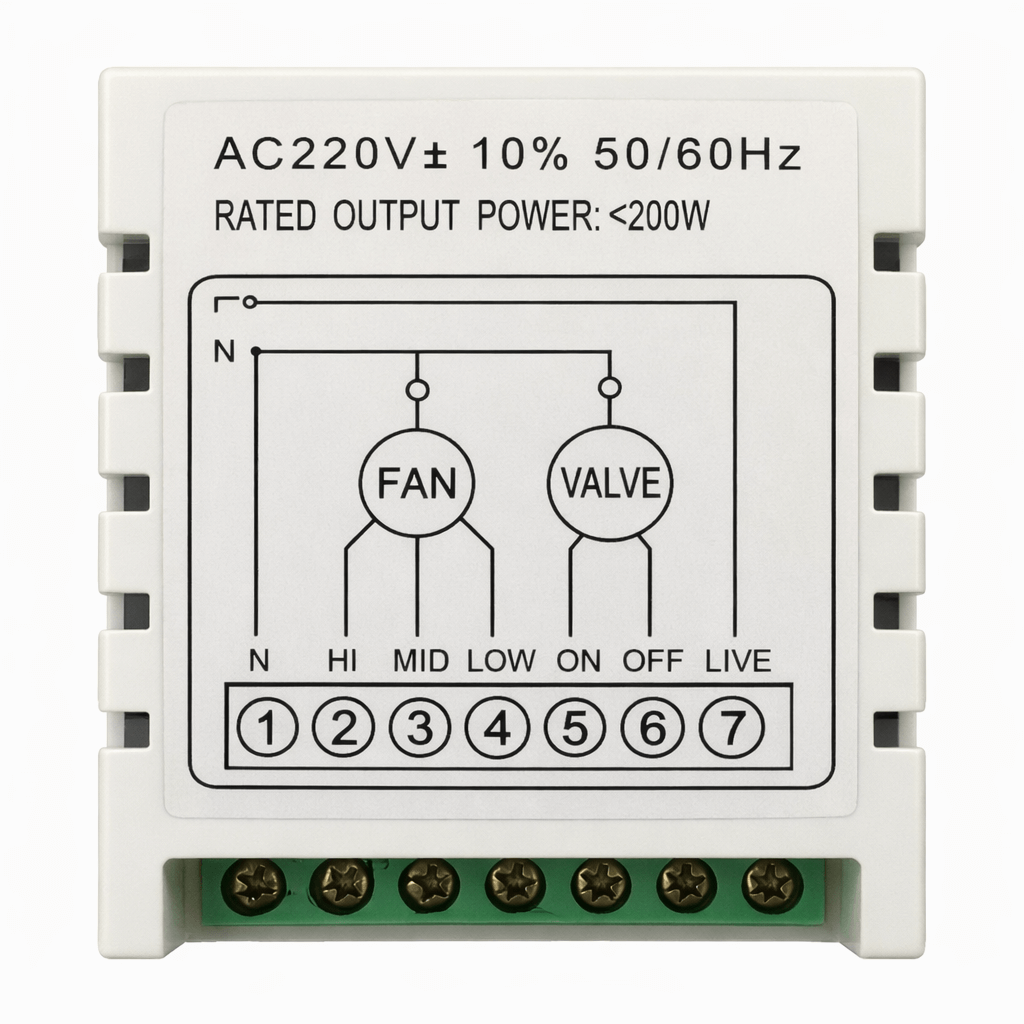

Wiring Terminals (7-Terminal Design)
-
N – Neutral
-
HI – Fan High Speed
-
MID – Fan Medium Speed
-
LOW – Fan Low Speed
-
ON – Valve Control (Open)
-
OFF – Valve Control (Close)
-
LIVE – Live / Line Input
Supported Systems
-
2-pipe or 4-pipe fan coil units
-
Motorized water valve systems
Load Type
-
AC fan motor
-
AC electric valve

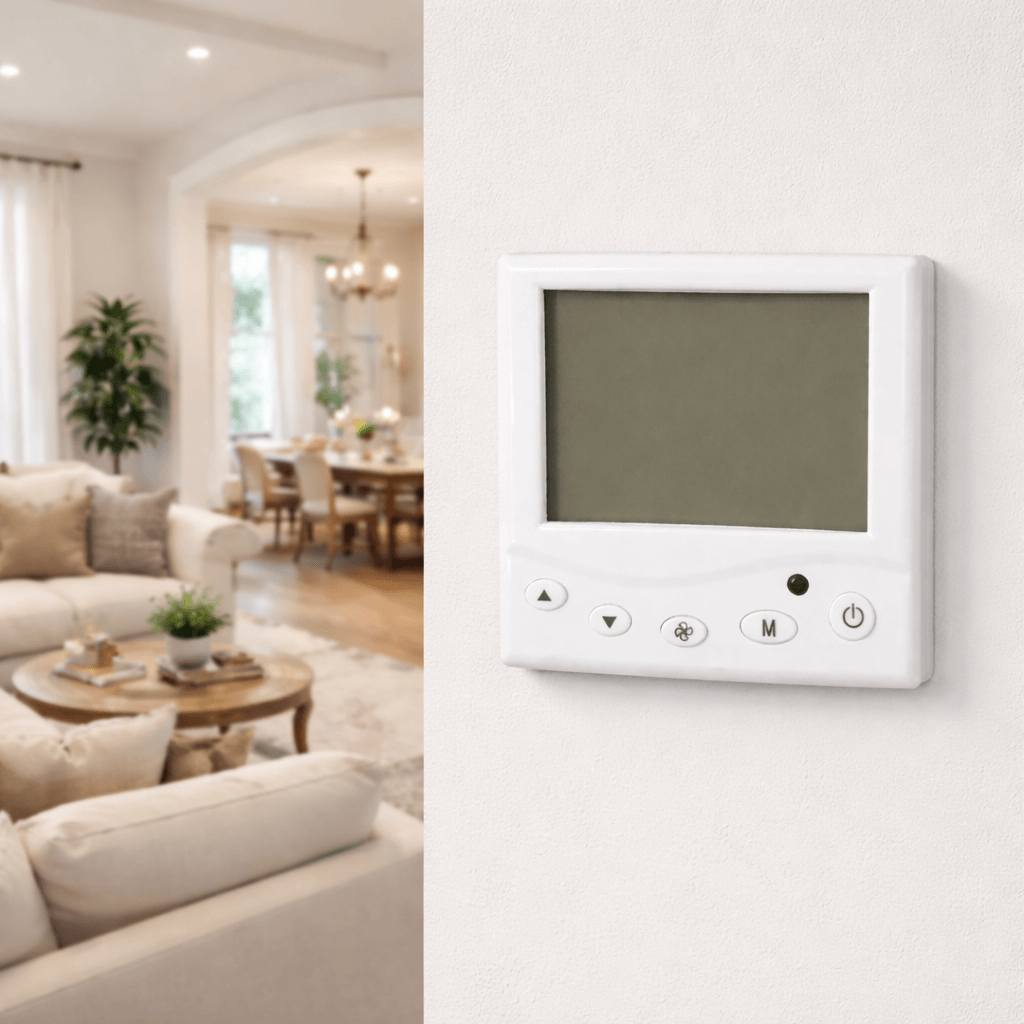

Installation Type
-
Wall-mounted
-
Screw terminal wiring
Application
-
Residential apartments
-
Hotels
-
Offices
-
Commercial HVAC fan coil systems
This thermostat can be used to turn a radiator ON/OFF only if the radiator uses an AC 220V motorized valve (ON/OFF type).
✅ Works if:
-
The radiator is controlled by a 220V AC electric valve
-
The valve only needs open / close control (no modulation)
-
Total load is under 200W
In this case, connect:
-
LIVE → Power input
-
N → Neutral
-
ON / OFF → Radiator valve open/close
❌ Does NOT work if:
-
The radiator uses a manual valve
-
The radiator uses a low-voltage (24V or battery) valve
-
The radiator uses a thermostatic radiator valve (TRV)
-
Proportional or modulating valves are required
