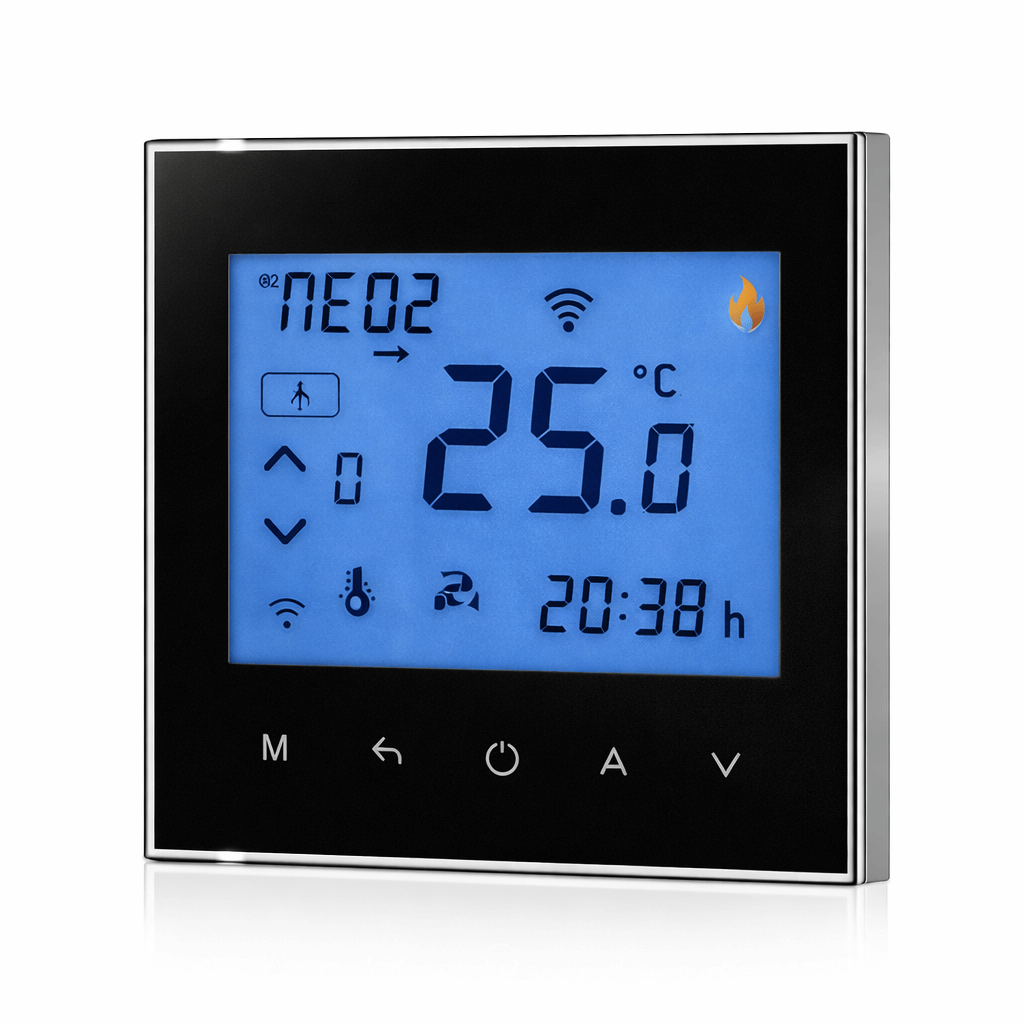

Smart WiFi Thermostat – Intelligent Heating Control
This Smart WiFi Newcleo Thermostat is designed for precise temperature control in residential and commercial heating systems. It supports water heating (GA version) and electric heating (GB version) and can be remotely controlled using the My BecaSmart mobile application.
With a modern LCD display, accurate NTC temperature sensor, and programmable scheduling, this thermostat helps optimize comfort while reducing energy consumption. The unit supports wide voltage input and high current loads, making it suitable for underfloor heating and electric heating systems.
Key Features
-
📱 WiFi Control via My BecaSmart App
-
🌡 High Accuracy Temperature Control (±1°C)
-
🕒 Weekly Programmable Scheduling
-
🔥 Supports Water Heating (3A) or Electric Heating (16A)
-
⚡ Wide Voltage Range: 95–240VAC
-
🧱 Standard 86×86 mm Wall-Mounted Design
-
🔒 Flame-Retardant PC+ABS Housing
-
📊 Clear LCD Display with Heating Status Indicators
🟢 TECHNICAL SPECIFICATIONS (Use as “Additional Information”)
| Specification | Details |
|---|---|
| Temperature Sensor | NTC |
| Temperature Accuracy | ±1°C |
| Set Temperature Range | 5 – 35°C |
| Room Temperature Display Range | 5 – 99°C |
| Power Supply | 95 – 240VAC, 50/60Hz |
| Power Consumption | < 1.5W |
| Current Load | 3A (Water Heating), 16A (Electric Heating) |
| Timing Error | < 1% |
| Operating Temperature | 0 – 45°C |
| Operating Humidity | 5 – 95% RH (Non-condensing) |
| Storage Temperature | −5 – 55°C |
| Housing Material | PC + ABS (Flame Retardant) |
| Faceplate Size | 86 × 86 mm |
| Thickness | 13.3 mm |
| Installation Hole Distance | 60 mm |
| Mounting Type | Wall-mounted |
| App Compatibility | My BecaSmart |
🟢 DIMENSIONS (Optional section)
Product Dimensions (mm):
-
Front panel: 86 × 86
-
Panel thickness: 13.0
-
Rear body depth: 26.0
-
Rear mounting size: 50.3 × 50.3
🟢 COMPATIBILITY & VERSIONS
-

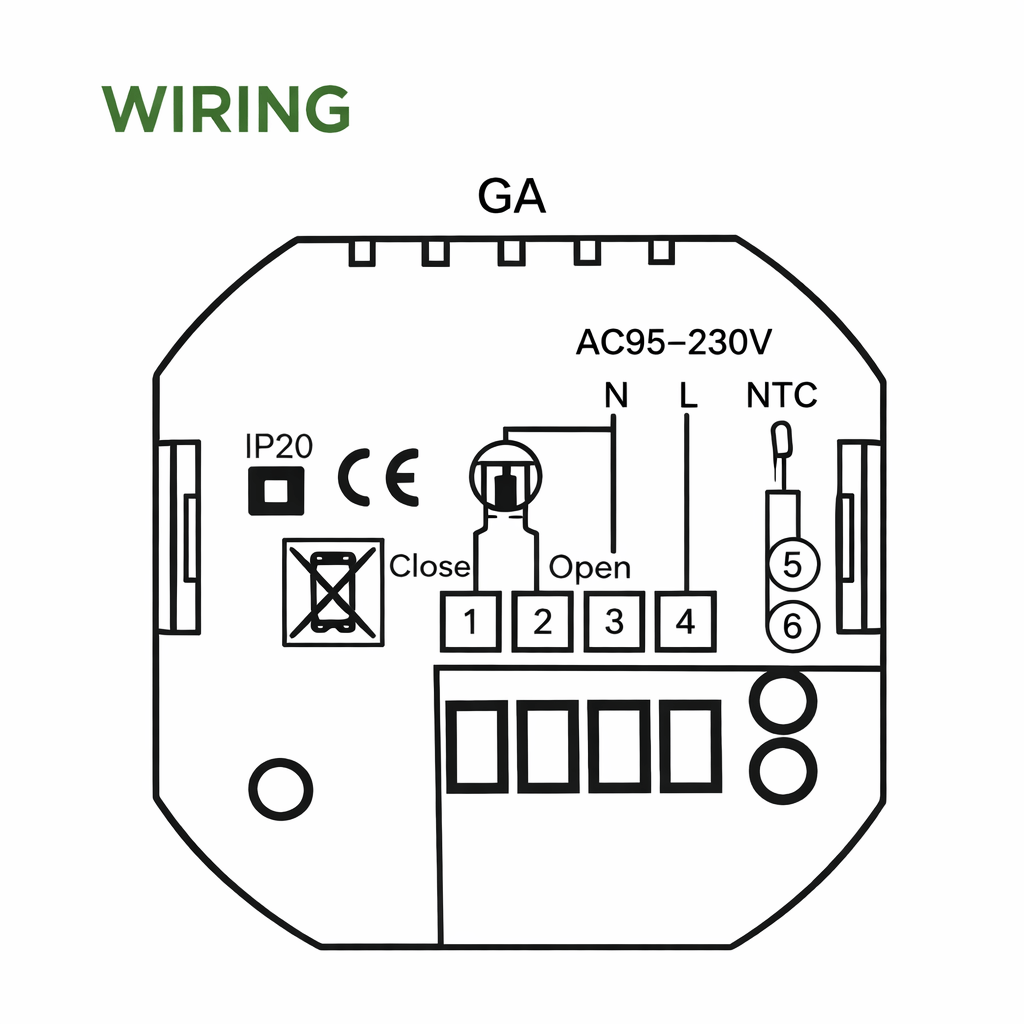

GA Version: Water heating systems
-
GB Version: Electric heating systems
⚠️ Please select the correct version based on your heating system before installation.
🟢 PACKAGE CONTENTS
-
1 × Smart WiFi Thermostat
-
1 × Temperature Sensor (NTC)
-
1 × Installation Screws Set
-
1 × User Manual
🟢 INSTALLATION NOTES (Optional)
-
Professional installation recommended
-
Power must be disconnected before wiring
-
Ensure correct GA / GB model selection
